Seller: tmraudio McIntosh MR-66 Vintage AM / FM Tube Tuner AS-IS (No AM) (14421)

$392.70
数量:
加到收藏

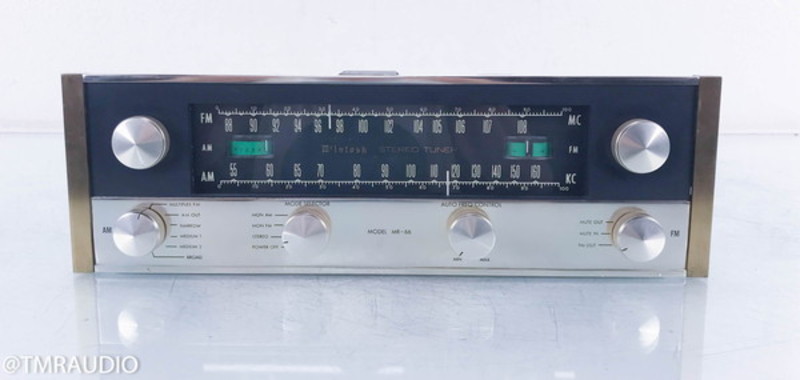

Product: Mcintosh MR-66 Vintage AM / FM Tube Tuner; AS-IS (No AM)

Product SKU: 14421

Serial Number: 1N751

Voltage: 105-125V

Cosmetic Description: 7/10 Very good cosmetic condition with some minor visible cosmetic wear including some light scratching on the top surface and sides and minor tarnish on the tube bed chrome and tube covers. The TV out thumbscrews are missing and the faceplate edges are tarnished and although they can be pulled off fairly easily stay on just fine. This item shows some wear consistent with its age but is still presentable and sounds wonderful.

What is Included: Tuner, 2 6U8A tubes, 4 6AU6 tubes, 12AT7 tube, 12AU7 tube, 6CS6 tube, 6BN8 tube, 26BN4A tubes, 6BW4 tube, 26BA6 tubes, 6BE6 tube, 26BY8 tubes

Functional Notes: This item is being sold AS-IS. We were unable to tune to any AM stations, but were able to receive FM stations. Otherwise the operational condition of this item is excellent, fully tested and no other issues found.

Age: Circa 1961

# of Owners: Unknown

Tobacco Exposure: No

Service History: None

MSRP: $325

Other Notes: Stereo simulcast (binaural) am/fm tuner. Can be used for fm stereo with outboard MA6 multiplex adapter. Separate AM and FM tuning knobs.

FM SECTION: sensitivity 3-1/4uV. Response 20-20kHz within 2dB. Distortion less than 0.8%. Capture ratio 1 to 0.7. Three IF stages. Two limiters. Image rejection 80dB.

AM SECTION: sensitivity 1.5uV. Selectivity bandwidth 20-20kHz, 20-11.5kHz, 20-8kHz, and 20-6.5kHz. Whistle filter reject 70dB at 10kHz. Audio out 4v.

FRONT PANEL: AM sw: multiplex fm, am out, narrow, medium 1, medium 2 or broad. Mode selector sw: mon am, mon fm, stereo or power off. AFC ctrl: min to max. FM function sw: mute out, mute in or fm out. AM signal strength meter. FM tuning meter. Zero adj for am and fm signal strength meters behind end caps.

BACK PANEL: MPX out. MPX adapter power. 2 mpx inputs. AM out. FM out. AM antenna sw: ant or loop. Lamp sw: hi or lo. AM out adj. FM out adj. Ext am antenna. 300 or 75 ohm fm antenna.

Size 5-1/8"H, 15-5/8"W and 12-3/16"D behind panel. Weight 27 lb. Sold from 1960-1961. Last retail price $325.00

Product Specifications

Manual
